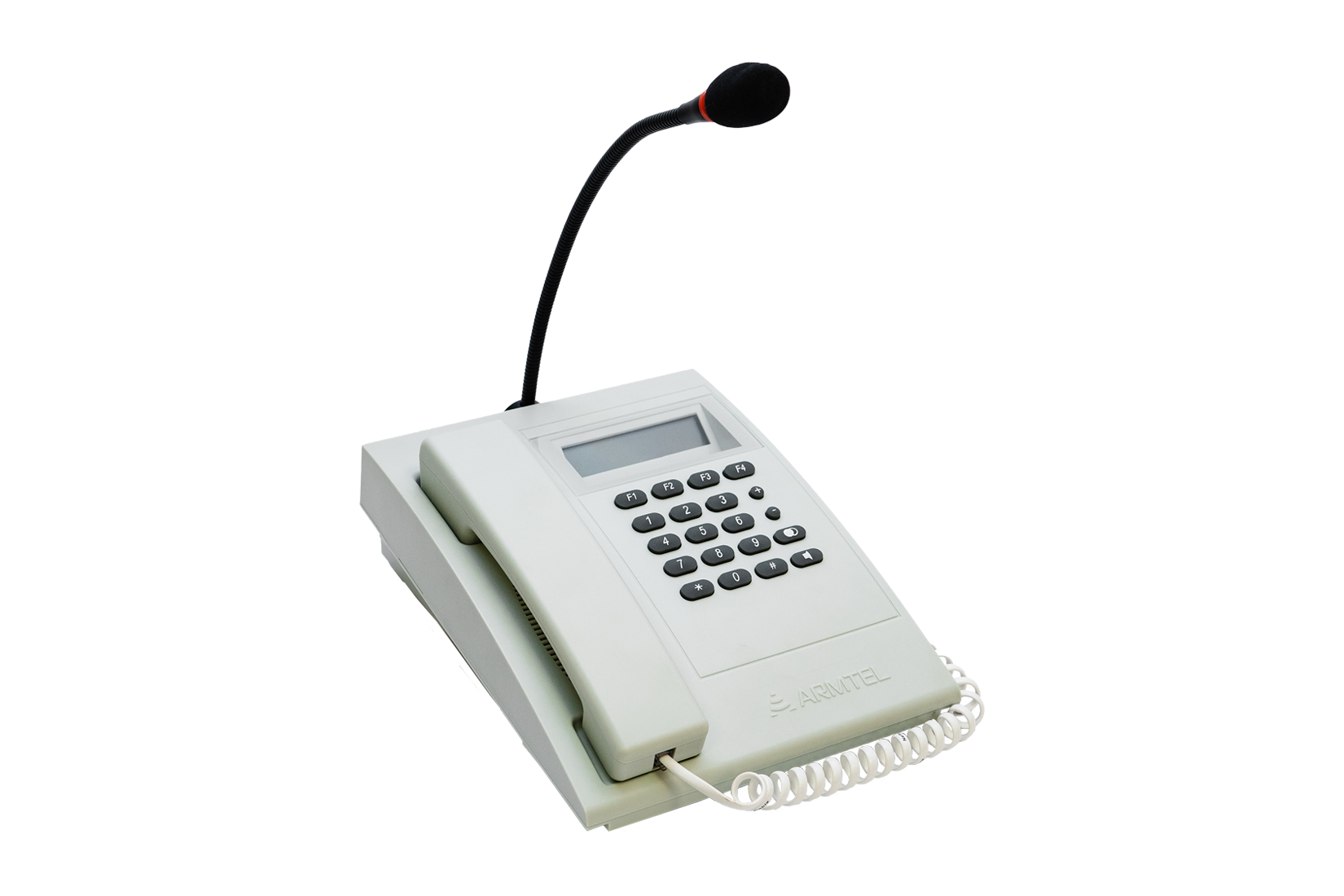

DIT Multifunction desktop digital call station

DIT Multifunction desktop digital call station is intended for use as a subscriber loudspeaker communication device of the DCN and ARMTELICS systems manufactured by Armtel LLC (Russia) at industrial and transport enterprises.

The DIT console is designed for use in metallurgical, chemical, oil refining, gas and oil production and other industries, as well as in transport.

The DIT console is installed in control rooms, office, remote rooms and operates at temperatures from minus 5 °C to plus 55 °C, with a relative humidity of up to 80 %.

Download image

Parameter

Value

Nominal DC power supply, including “phantom supply” PoU, V

Permissible supply voltage range, V

from 36 to 60

Protection against supply polarity reversal

Yes

Maximum operating current, including “phantom supply” PoU, mА

225

Current consumption in standby mode, no more, mА

Speech bandwidth, Hz

from 300 to 7000

Maximum electric power of built-in amplifier, W

0,85

Communication interface

Uk0

Communication protocols

«Armtel», DSS

Type of climatic category, atmosphere type (under GOST 15150-69)

NF4.1

Protection degree provided by shells under GOST 14254-2015

IP40

Electrical protection class (under GOST IEC 61140-2012)

III

Seismic category under NP-031-01

3Н

Safety class under NP-001-15*

Air temperature range, ºC

from - 5 to + 55

Atmospheric pressure, kPа

from 84 to 106,7

Relative air humidity at 25 °С, %

up to 80

Overall dimensions with a folded gooseneck microphone, not more than, mm

296×200×127

Overall dimensions with a straightened gooseneck microphone, not more than, mm

296×200×400

Weight, maximum, kg

1,2

*Product compliance with safety class 4Н under НП-001-015 is admitted

DIT remote control can be equipped with a special fastener for mechanical connection and has a connector for electrical connection with the DIS remote control expansion unit (up to four expansion units).

DIT remote control uses a built-in broadband speaker to provide speakerphone communication. The speaker used provides loud and clear reproduction of voice messages.

DIT remote control design uses a non-removable highly sensitive electret microphone on a flexible gooseneck stand. The microphone design has a rigid fixed part and a movable flexible part for convenient adjustment of the microphone tilt during operation. For additional indication, a red LED ring is provided at the top of the microphone. The microphone is equipped with a windscreen, which makes the sound cleaner (to eliminate the appearance of unwanted whistling and other similar distortions). Also, due to the new location of the microphone, extraneous noise, vibration from the device’s workplace do not degrade the sound characteristics of the device.

An option for adjusting the microphone sensitivity has been added.

The special feature of the DIT remote control is the combination of flexibility of its programming with the ability to make changes to many functions on-site in accordance with customer requirements (the volume level of the handset and ringer, the brightness of the display, etc. can be changed).

establishing a connection with other subscriber communication devices of the DCN system using the telephone keypad or target buttons when the DIS Expansion unit is connected;
simplex and duplex communication of the subscribers with the help of a handset;
loud-speaking simplex and duplex communication of the subscribers with the help of integrated loudspeaker and gooseneck microphone;
display of DIT console network number, current date and time, system functions and type of communication for incoming and outgoing calls, as well as numbers of calling and called subscribers;
configuration of operation parameters with the help of functional buttons and the display;
conversation control using special buttons “*” and “#”;
adjusting the volume level of the main speaker, handset speaker and external speaker;
adjusting the sensitivity of the microphones;
connection of up to four DIS expansion units (up to 192 target buttons);
connecting an external speaker via an additional (external) amplifier;
connecting a headset or external microphone with a push-to-talk.
As part of the ARMTELICS system, the DIT console provides the following functions:
establishing a connection with other subscriber communication devices of the ARMTELICS system using the telephone keypad or target buttons when the DIS Expansion unit is connected;
simplex communication with the help of a handset;
loud-speaking simplex communication with the help of integrated loudspeaker and gooseneck microphone;
configuration of operation parameters with the help of functional buttons;
conversation control using special buttons “*” and “#”;
adjusting the volume level of the main speaker, handset speaker and external speaker;
adjusting the sensitivity of the microphones;
connection of up to four DIS expansion units (up to 192 target buttons);
connecting an external speaker via an additional (external) amplifier.
The complete set of functions performed by the DIT console, their implementation and configuration features may differ depending on the configuration of the central switch and the software version. A description of the features of using the DIT console as part of the DCN, a list of assigned functions are given in the operating documentation for the DCN system.
