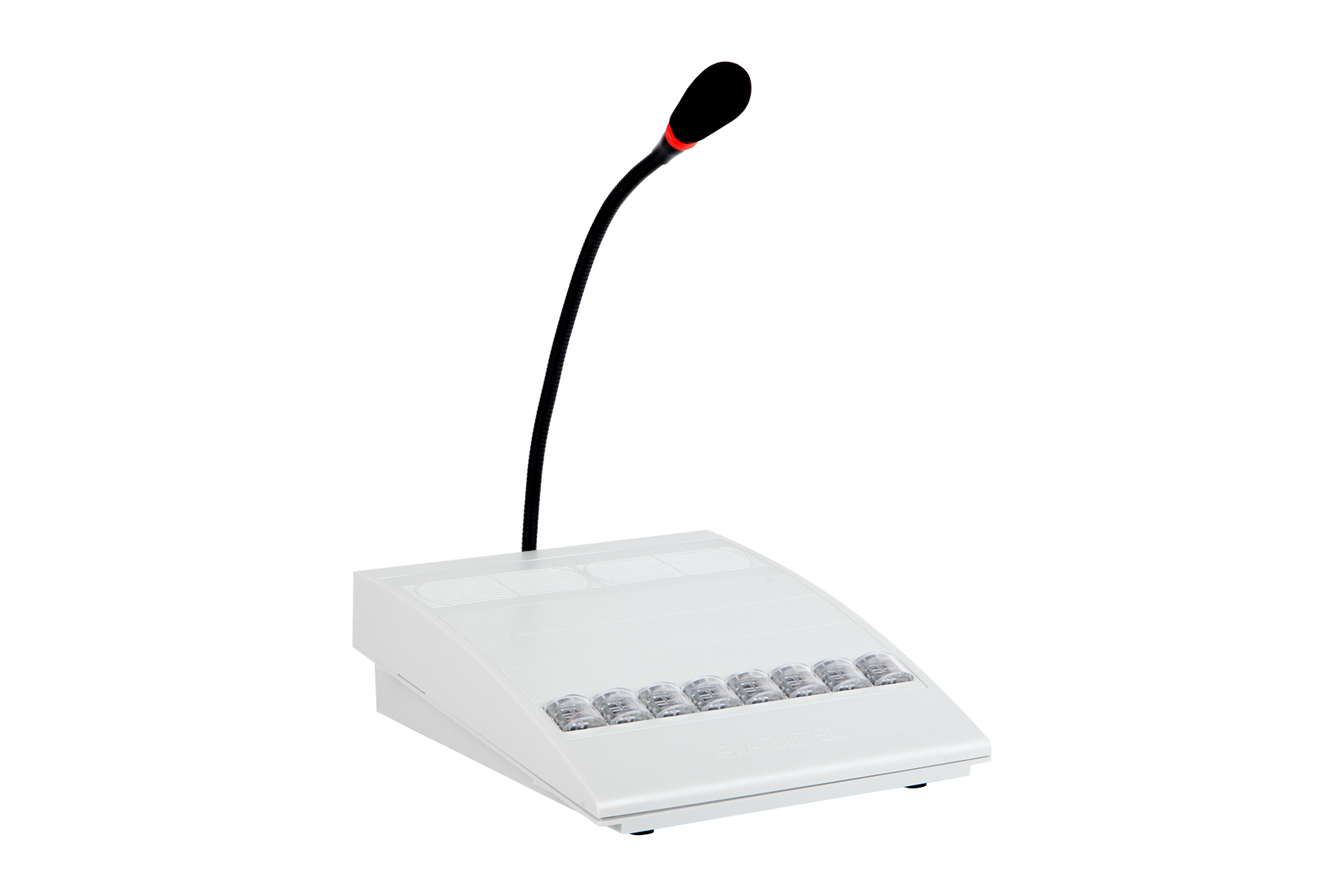

DIS-LE Desktop call station

DIS-LE digital loudspeaker control panel is the subscriber equipment of the loudspeaker operational and technological communication system and loud and emergency notification.

Download image

Parameter

Value

Nominal DC power supply voltage, V

Allowable power supply voltage range, V

from 36 to 72

Power supply polarity compatibility

Yes

Maximum operating current, max, mA

100

Standby mode power consumption, not exceeding, mA

Frequency spectrum bandwidth of audio signal transmission path, Hz

300 - 6800

Maximum output power of built-in amplifier, at least, W

0,85

Power consumption, not exceeding, W

3,2

Maximum permissible power supply line resistance, Ohm:
− at 48 V supply voltage
− at 60 V supply voltage

200
300

Maximum communication line length, m

3000

Communication interface

Uk0
Up0

Communication protocol

«Armtel»

Climatic version according to GOST 15150-69

NF4.1

Ingress protection rating according to GOST 14254-2015

IP40

Electrical safety class according to GOST IEC 62368-1-2014

Permissible ambient temperature range, °C

from - 5 to + 55

Atmospheric pressure, kPa

from 84,0 to 106,7

Relative humidity at 25°C, %

to 80

Overall dimensions with microphone fully extended, max., mm

264х202х380

Mass, max., kg

1,18*

*product weight depends on the design

As part of the DCN or ARMTELICS Communication System. The DIS-LE console operates via the Uk₀ interface. As part of other communication systems, the DIS-LE console operates via the Up₀ interface. The DIS LE console is installed in control rooms, offices, control rooms and operates in the temperature range from -5°C to +55°C at a relative humidity of up to 80%. DIS-LE is intended for use in the metallurgical, chemical, oil refining, gas and oil production and other industries, as well as in transport.

establishing a connection with other DCN system subscriber intercom terminal devices;
simplex individual call using a target button (hereinafter referred to as TP). Call function;
possibility of a group simplex call;
one-way conversation control;
indication of busy status, incoming and outgoing calls, and notification of an unanswered call;
simplex call to the ARMT.665230.002 (MAP) analog subsystem module with activation of a relay from the MAP;
operation of the functions “Fragment”, “Circular”, “Selector”, “Last call”, “Call with automatic answer”, “Call transfer”, “Dialer”;
possibility of operation of the call priority system;
possibility of adjusting the loudspeaker volume level;
“Fixation” option for DIS LE Remote Control buttons.

As part of the ARMTELICS system, the DIS LE Remote Control operates under the control of the IPN-4LE remote connection line module (hereinafter referred to as the IPN 4LE module) via the Uk0 interface and provides the following functions:

connection to the IPN-4LE module via the U-interface;
simplex individual call using the Central Control via the SIP and Armtel-IP protocols;
indication of busy status, incoming and outgoing calls, and notification of an unanswered call via the SIP and Armtel-IP protocols;
one-way conversation control via the Armtel-IP protocol;
simplex call to the ACM-IP2 analog subsystem module with activation of control lines via the Armtel-IP and SIP protocols;
group simplex call via the SIP and Armtel-IP protocols;
playback of fragments via SIP and Armtel-IP protocols;
operation of the call priority system via SIP and Armtel-IP protocols;
adjustment of the volume level of the DIS LE Remote Control speaker;
recording of speech fragments in the local memory of the DIS LE Remote Control;
indication of notification of the second call;
operation of the functions “Parrot”, “Circular”, “Selector”;
recording of conversations;
operation via the SNMP protocol;
the ability to configure via the web interface.

In other communication systems, when connected via the Up0 protocol, the DIS LE Remote Control provides the following functions:

simplex individual call using the Central Control Center;
one-way conversation control;
indication of busy, incoming, outgoing and unanswered call;
group simplex call;
operation of the call priority system;
adjustment of the volume level of the DIS LE Remote Control speaker;
the “Fix” option for the DIS LE Remote Control buttons.
