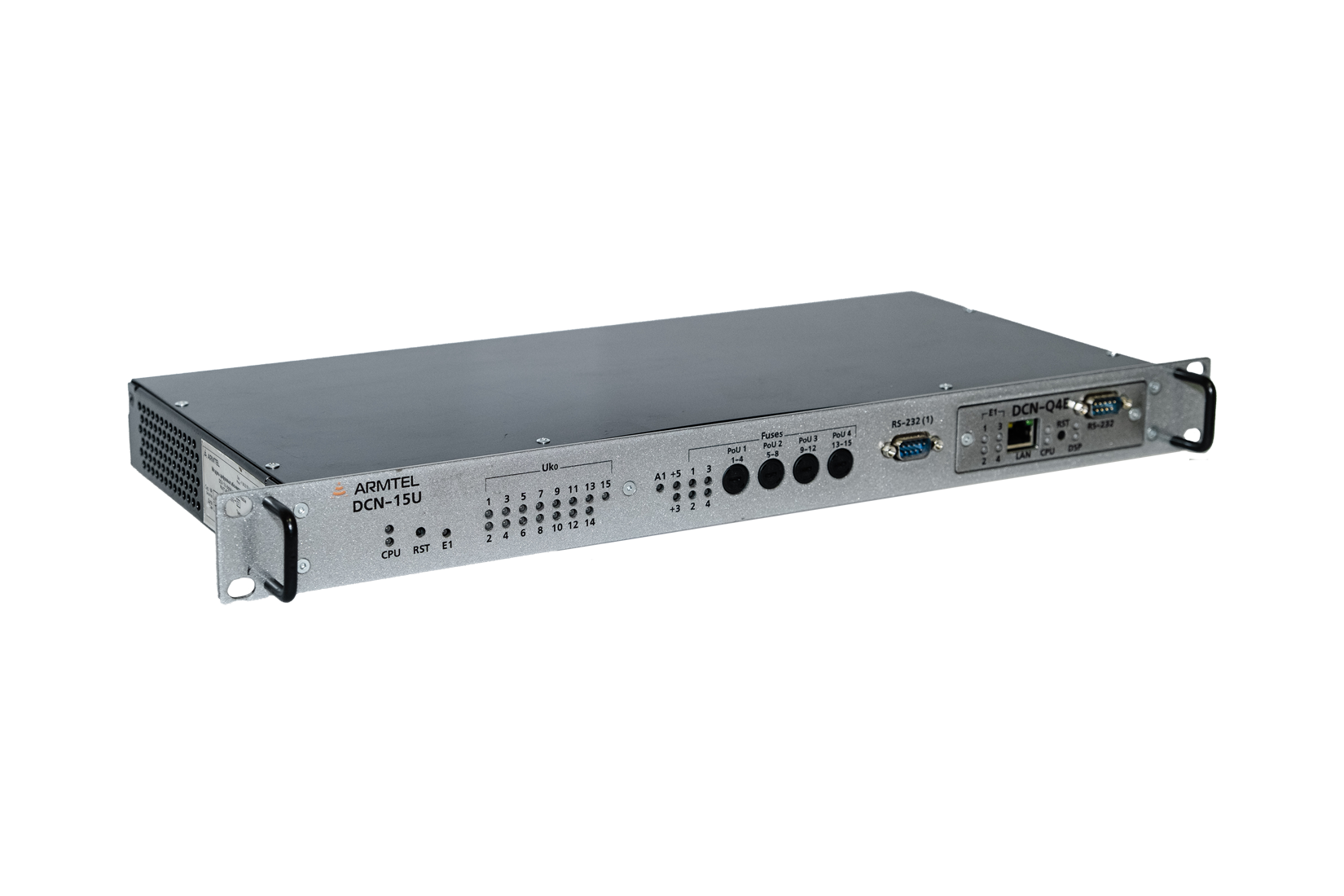

DCN-15U Digital subscriber module

DCN 15U Digital subscriber module is a compact module for connecting digital subscriber devices as part of a distributed DCN operational-process communication and paging system.

Download image

Parameter

Value

Electrical characteristics

Rated voltage, V DC

Permissible range of supply voltage, V

from 36 to 60

Reverse polarity protection

Available

Power consumption, maximum, (excluding phantom power supply), W:
RMLT.465275.019
RMLT.465275.019-01

10
15

Consumption current, max., A:
RMLT.465275.019
RMLT.465275.019-01

0,22
0,31

Maximum load current on power lines of subscriber interface Uk0, mA

200

Technical characteristics

Communication interface

Uk0

DCN Central Switch Communication Interface

E1 (G.703/G.704)

Interface for communication with personal computer

RS-232 (V.24)

Communication protocols

«Armtel», DSS

Maximum number of connected subscriber units, pcs.

Utilization properties

Climate class, atmosphere type as per GOST 15150-69

NF4.1

Protection rating as per GOST 14254-2015 (IEC 60529:2013)

IP20

Protection against electric shock class as per ГОСТ IEC 62368-1-2014

III

Safety class by NP-001-15 * and NP-033-11

3Н

Seismic category by NP-031-01

Permissible ambient air temperature, ºC

от - 5 до + 55

Atmospheric pressure, kPa

от 84,0 до 106,7

Relative air humidity at 25 ° С,%

до 80

Overall dimensions

483×230×44

Mass (excluding mass of DCN 15U Subscriber connection cable and DCN Q4E E1 Connection cable), not more than, kg
RMLT.465275.019
RMLT.465275.019-01

2,6
2,8

DCN 15U Subscriber connection cable not more than, kg

0,5

* Compliance of a product to a class of safety 4H on NP-001-15 is allowed (RMLT.465275.019TS1 "DCN 15U Digital subscriber module. Technical Specifications. Part 2. Technical Specification Supplement").

DCN‑15U Digital subscriber module is designed to work as part of the DCN communication system as a module for connecting communication endpoints over the Uk₀-interface. DCN‑15U translates voice and signaling links between the 15 subscriber Uk₀-interfaces and the E1 flow to the central switch, and does not perform the functions of switching connections between subscribers. The switch is a compact switch DCN-2 or DCN-Q4E (4xE1) Switching Processor Module (installed in the housing, version of RMLT.465275.019-01). DCN communication systems manufactured by Armtel LLC, built with these products, provide voice communication between loudspeaker subscriber devices manufactured by Armtel LLC, telephony subscribers, search communications and emergency loudspeaker.

Switching processor module DCN-Q4E (4xE1), installed in the DCN-15U case of version RMLT.465275.019-01, performs the functions of the central place of the DCN system, to which it is possible to connect the “own” DCN-15U Module, other DCN-15U Modules, other places DCN system or its equipment on four E1 lines.

Thus, DCN-15U version RMLT.465275.019-01 can create a DCN system with a small capacity of up to 60 digital and / or consumer subscribers, when the corresponding subscriber modules are connected to four E1 interfaces.

connection of up to 15 terminals via lines of two-wire subscriber interfaces Uk0 for a distance of up to 6 km;
translation of voice and signaling links between the E1 flow used to connect to the central switch of the DCN system and 15 digital subscriber interfaces Uk0;
monitoring and indication on the front panel of the state of subscriber interfaces and E1 line;
possibility of terminal devices power supply via subscriber interface line Uk0 (PoU);
possibility of installation of switching processor module DCN 15U (module DCN-Q4E) in the housing of the 4xE1.
As part of the DCN system, the DCN 15U provides communication with the following devices:
DIS, DIS-TOP or similar (manufactured by Armtel LLC, Russia) digital simplex communication consoles;
all-weather and explosion-proof digital loudspeaker devices of type DW/DWEx or similar (manufactured by Armtel LLC, Russia);
multifunctional digital telephone sets such as DTS5, DTS-TOP or similar (manufactured by Armtel LLC, Russia);
analog connection module of MAP (manufactured by Armtel LLC, Russia), for communication with analog equipment (1 LF interface line) and switching control circuits (eight discrete I/O lines);
ISDN- telephones and other third-party devices with Uk₀

DCN 15U during delivery is ready for operation and does not require programming during operation. The DCN central switch connected to the DCN 15U via the E1 line controls the operation of module DCN 15U and its connected subscriber units.
