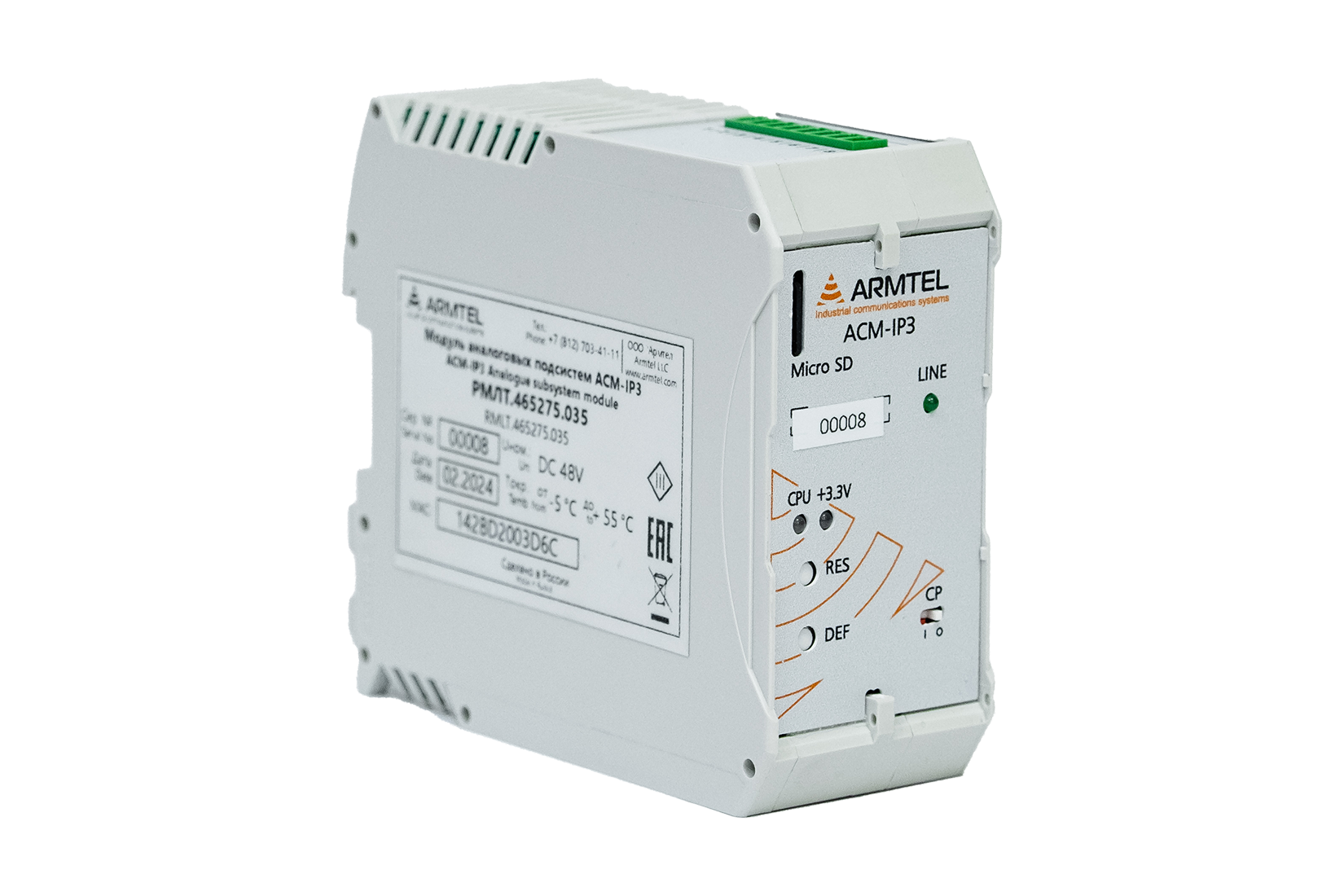

ACM-IP3 Analogue subsystems module

ACM-IP3 Analogue subsystems module is designed to be used in systems of dispatching, operative process loudspeaker communication and public address ARMTELICS (manufactured by Armtel LLC, Russia) at industrial and transport enterprises. ACM-IP3 Analogue subsystems module enables to use analogue equipment and to interact with automation and alarm units.

ACM-IP3 is used at the enterprises of metallurgical, chemical, mining, gas and oil producing, metal-working and wood-working industry, and at facilities of the Russian Traffic Ministry, the Ministry of Emergency Situations, the Ministry of Internal Affairs and the Ministry of Defence, etc.

Download image

Parameter

Value

Rated voltage¹⁾, V

External power supply voltage range¹⁾, V

from 36 to 60

Conformity with the PoE class

IEEE 802.3af Class 0

Reverse polarity protection

available

Maximum current consumption (IEEE 802.3af Class 0), max., A

0,35

Maximum power consumption, max.²⁾, W

1,2

Total duration of sound fragments (PCM format) available for recording into memory, min., minзаписи в память устройства, не менее, мин

1500

Communication interfaces

2×100BaseT Ethernet with PoE

Redundancy of 100BaseT Ethernet network connections

available

Redundancy of PoE power supply function of network interfaces

available

Communication protocol

Armtel-IP, SIP

Audio data transmission format (coder/decoder):
− over Armtel-IP protocol
− over SIP protocol

Armtel-IP
G.711A (A-Law)

Protocol for information transmission about the condition of devices and control lines

SNMP v2
Modbus TCP

Protocol for device configuration

HTTPS

Number of analogue lines, pcs

Rated input signal, mV (dB)
Rated output signal, mV (dB)

775 (0)

Low-frequency (LF) signal bandwidth (at 3 dB)³⁾, Hz

от 100 до 6800

Internal resistance of the line, max., kOhm

0,6

Number of discrete control lines (programmable), pcs

Input line current, max., mA

5,0

Maximum output current per one control line⁴⁾ (for rated power supply voltage of 48 V), min., mA

Electrical protection class (under GOST IEC 62368-1-201⁴⁾

III

Climatic category according GOST 15150-69

УХЛ4.1

Permissible ambient air temperature range, °C

–5 to +55

Ambient pressure, kPa (mmHg)

84,0 to 106,7
( 630 to 800)

Relative air humidity at +25 °C, %

up to 80

¹⁾ DC power supply voltage.
²⁾ Taking no account of power consumption of load connected to the control line.
³⁾ When using SIP protocol, the bandwidth is 100 to 3400 Hz.
⁴⁾ Maximum permissible total output current of control lines when supplied from PoE Class 0 source (injector), max., 0.22 A.
Note – Parameter values are given with no account of error of measuring devices

ACM-IP3 provides conversion of a digital communication interface into an analogue interface to ensure loud-speaking operative process communication with subscriber intercoms equipped with an analogue interface, and ACM-IP3 also has 8 bidirectional control lines that enable the following:

– connection of actuating devices with rated voltage of 48 V (e.g. 4x relay module);

– reception of 8 control signals from external devices (e.g. from other ACM-IP3 modules).

functions of subscriber device in loud-speaking systems under Armtel-IP and SIP protocols providing reception and transmission of an analogue signal;
playback of voice messages recorded in the internal memory of terminal units;
sending a notification about line short circuit to subscribers that are configured to receive such notifications using the “events” function;
calling a group with line activation (up to 8 lines simultaneously) without sound playback/without playback of sound files;
duplication of incoming/outgoing traffic to the IP address specified in the parameters of the “intercom recording” function;
support of SNMP protocols provides the possibility to notify the server about any events on the device using broadcast packages sent by the device to the specified IP address;
Modbus TCP is used used to monitor the status of lines (activated/deactivated);
possibility available on the ACM-IP3 to play a fragment on itself or to make a call without activating the lines using the “call to oneself” function;
providing of calls priorities, set during configuration of the subscriber units, via SIP and Armtel-IP protocols.
